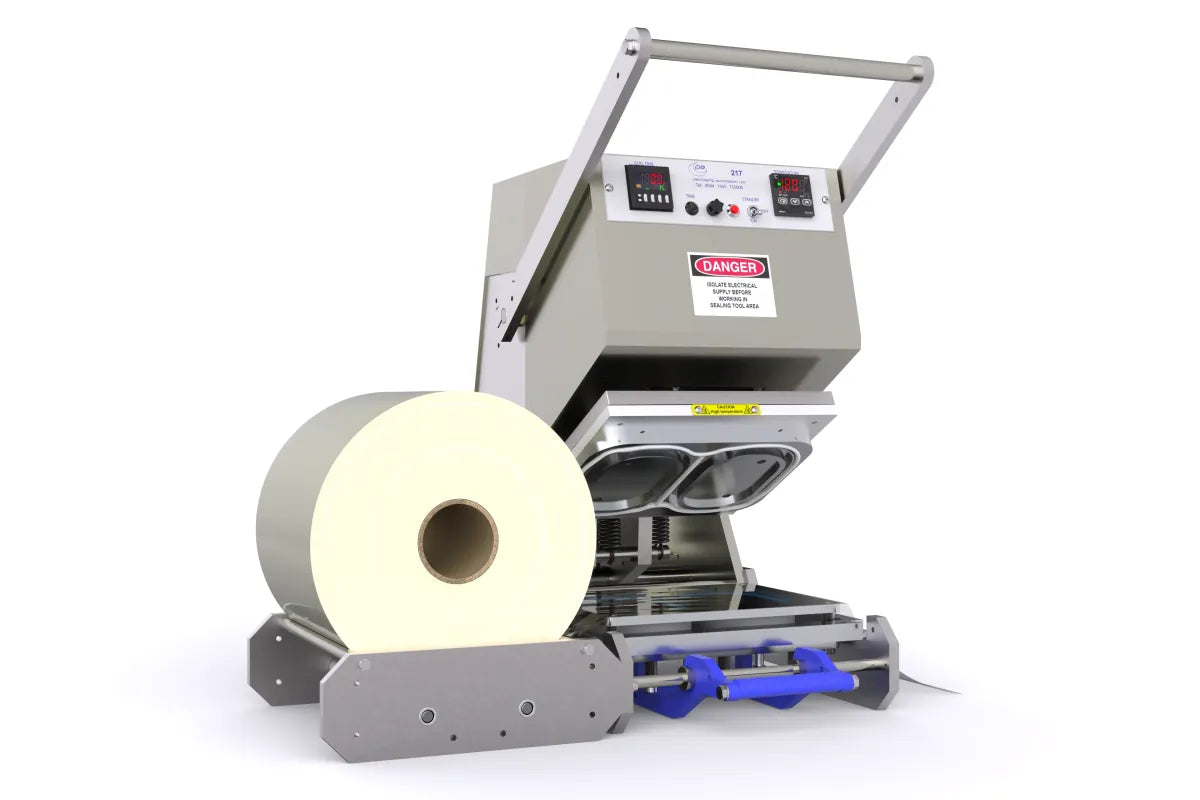

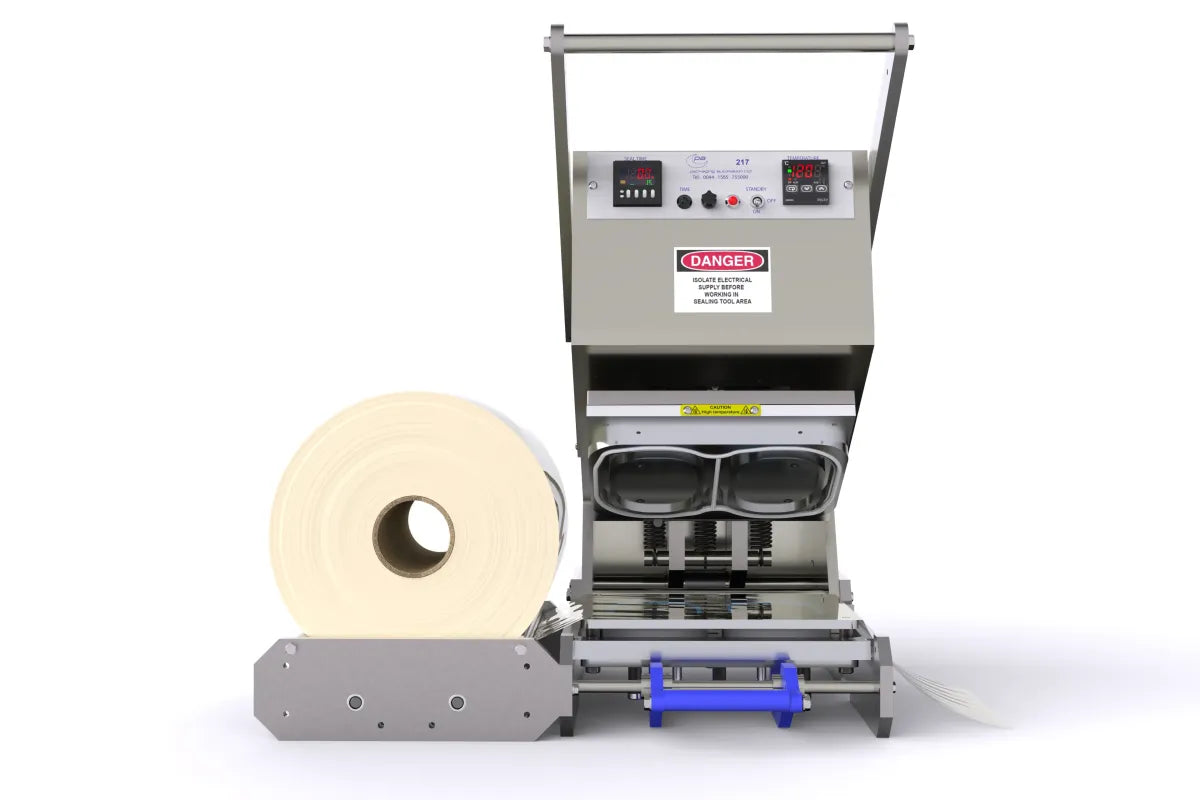

A fully portable, hand operated tray sealing machine that is ideal for new product development samples or small scale production. The simple design of the tool and film reel holder facilitates quick and easy changes to tray sizes. The PA217 has been designed to deliver the same seal force as the larger machines to guarantee reliability of seals.
Machine Features
Simple, easy operation
Bench mounted and portable
High accuracy sealing process
Hygienic, robust construction to food industry standards

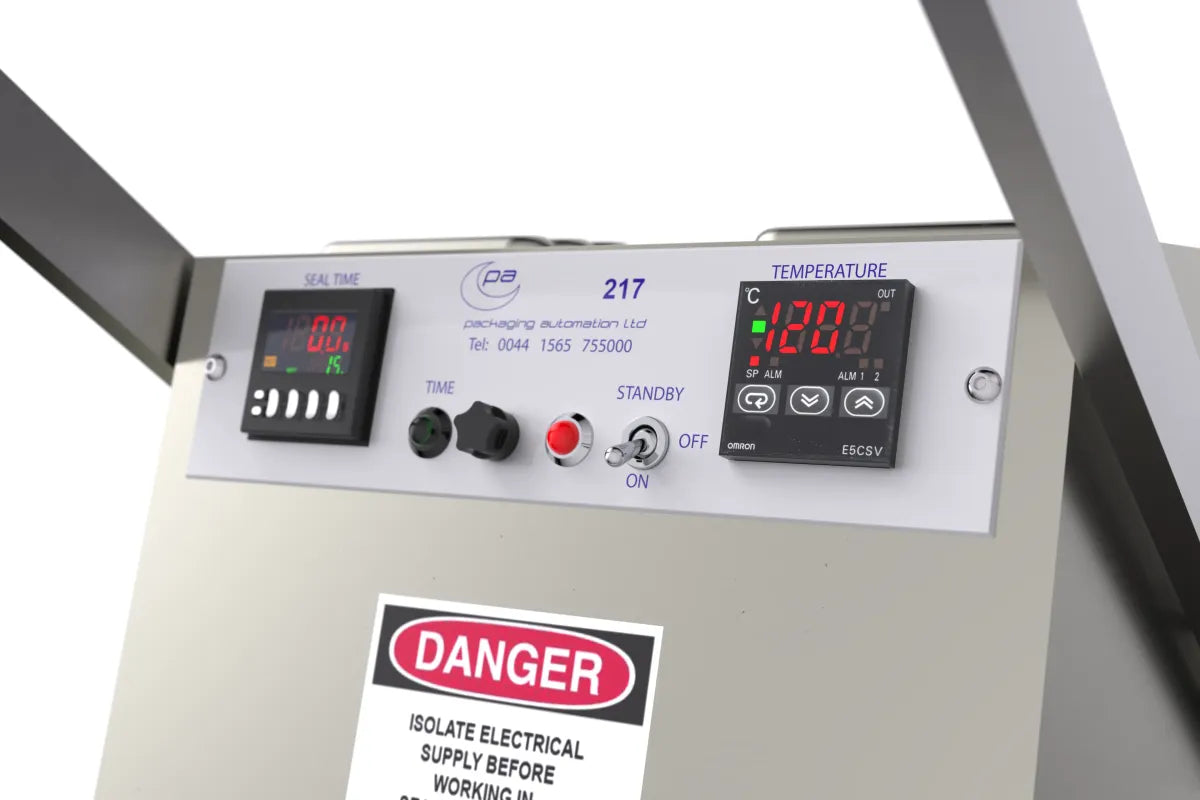

Digital temperature control ensures that an accurate temperature is maintained
Digital timer indicates the end of the required seal time
An extremely simple film feed path enables fast film changes with no tools required
Built in eject mechanism to aid the removal of sealed packs
Film reel holder can be operated from either side
Adjustable seal force for better seal quality
The machine is hand operated therefore compressed air is not required
Machine can be plugged into a standard three pin household socket
Options
Full all round sealing and cutting tool
Basic trial sealing tool (without film cut) for sample purposes
Can either be supplied as a 110V or 240V
Deep tray / pot upgrade

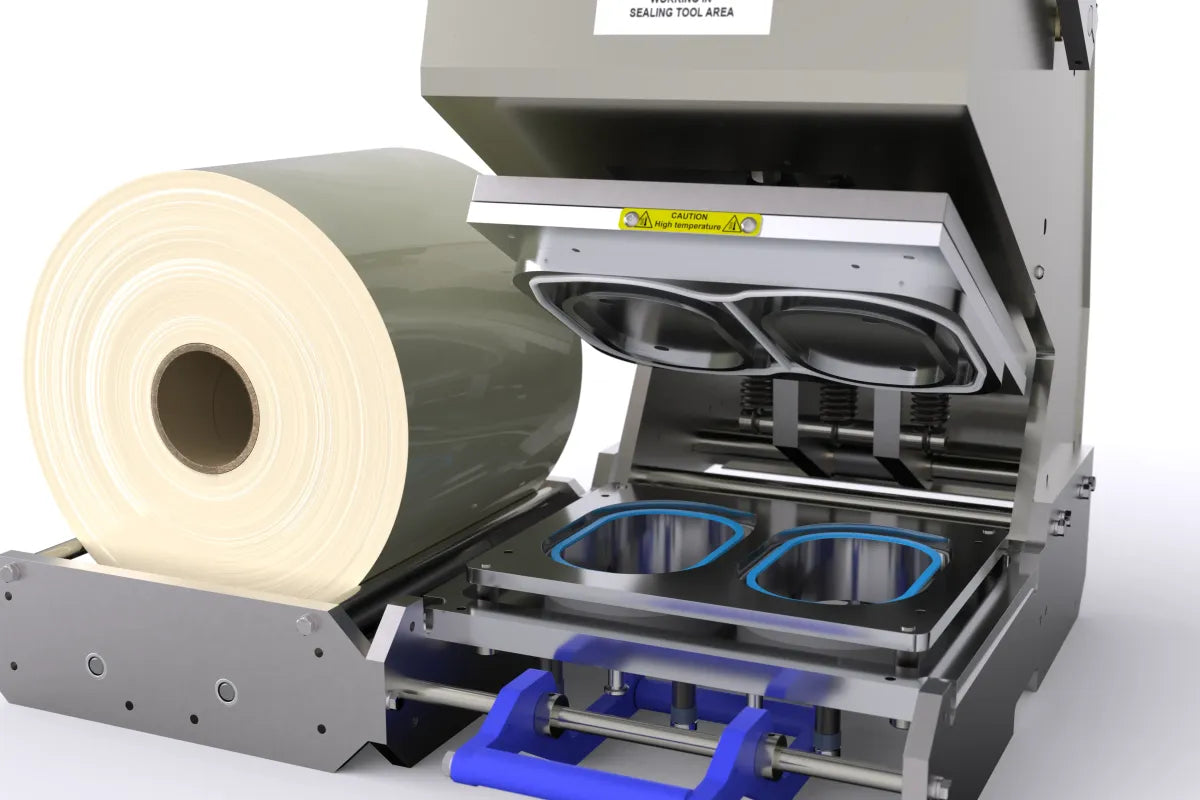

Tooling Features
Lightweight tooling can be changed over in less than 2 minutes
Can seal up to 2 impression
All round contoured film cut with a profiled peel tab if required
